BMW 5 Series Brake Service in Walsall, Worn Discs, Tired Calipers, and a Full Brake Overhaul

This BMW 5 Series came into us at Platinum Vehicle Services needing a brake service. The customer had noticed the car was not pulling up as cleanly as it should and had a slight judder through the brake pedal under firmer stops. That kind of feedback through the pedal is always worth taking seriously on a car this size. A 5 Series is a heavy vehicle and it asks a lot of its braking system, so we got it up on the ramp and took a proper look at what was going on.

The Discs Were Worn Below Minimum Thickness and the Calipers Were Showing Clear Signs of Deterioration

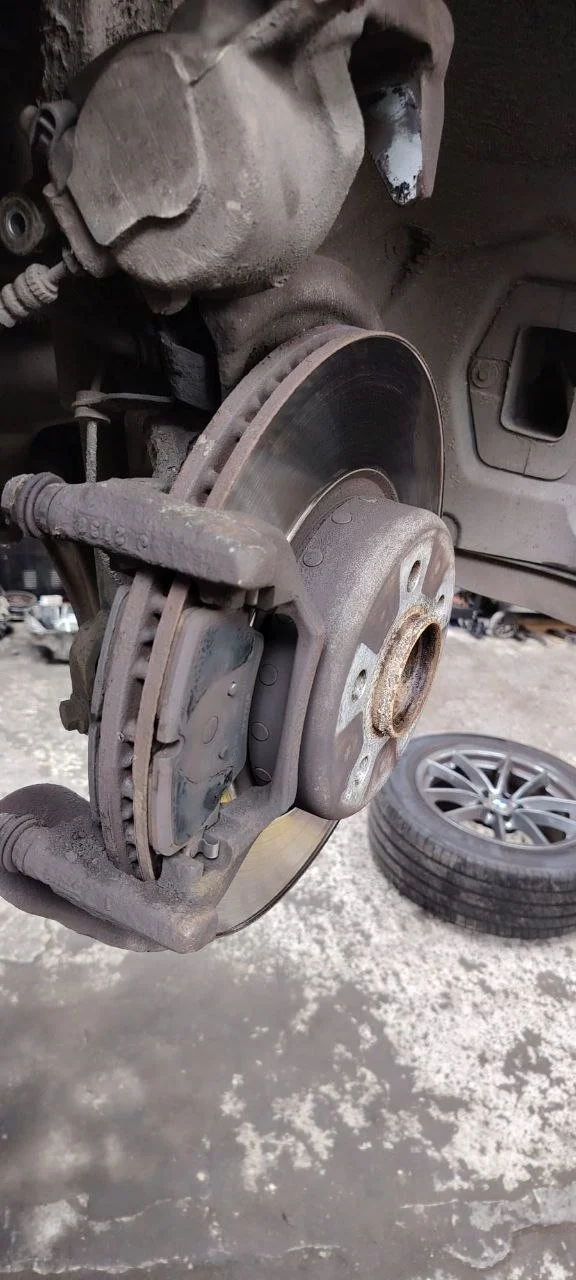

When we pulled the wheels off and inspected the brake assembly, the discs had worn down and were showing a pronounced lip around the outer edge. On a BMW 5 Series the rear discs should typically measure no less than around 10mm in usable thickness once you account for the minimum wear specification. These were past that point, and you could see corrosion cutting into the surface of the disc face itself, not just around the hat section where surface rust is normal, but across the braking track where the pads make contact. That means the friction surface is compromised and the pad cannot bite consistently across the full sweep of the disc. The calipers were also in poor condition. The slider pins had seized, which meant the caliper was not floating correctly. When a caliper cannot slide freely, the pad on one side carries almost all the load. That causes uneven wear, pulls the car to one side under braking, and puts the remaining pad material under far more stress than it is designed to handle.

Leaving This Any Longer Would Have Risked Uneven Braking, Accelerated Wear, and a Much More Expensive Repair

The judder the customer felt was a direct result of the disc surface being inconsistent. As the worn and corroded disc rotates, the pad is effectively hitting a surface that is no longer flat and even. That vibration travels back through the caliper, through the brake line, and into the pedal. Left alone, this does not stay the same. It gets worse, and it gets worse quickly. Seized caliper sliders, if not addressed, can cause the caliper to stick. A sticking caliper means one side of the brakes is working when the other is not, and under an emergency stop that is a serious problem because the car will not stop in a straight line. Beyond the safety concern, a seized caliper will destroy a new disc and pad set in a very short distance if the underlying problem is not fixed first. That would mean spending twice on parts and labour that should only need to be spent once.

New Discs and Calipers Fitted, Pads Replaced, and the Full Brake System Checked Before the Car Left the Workshop

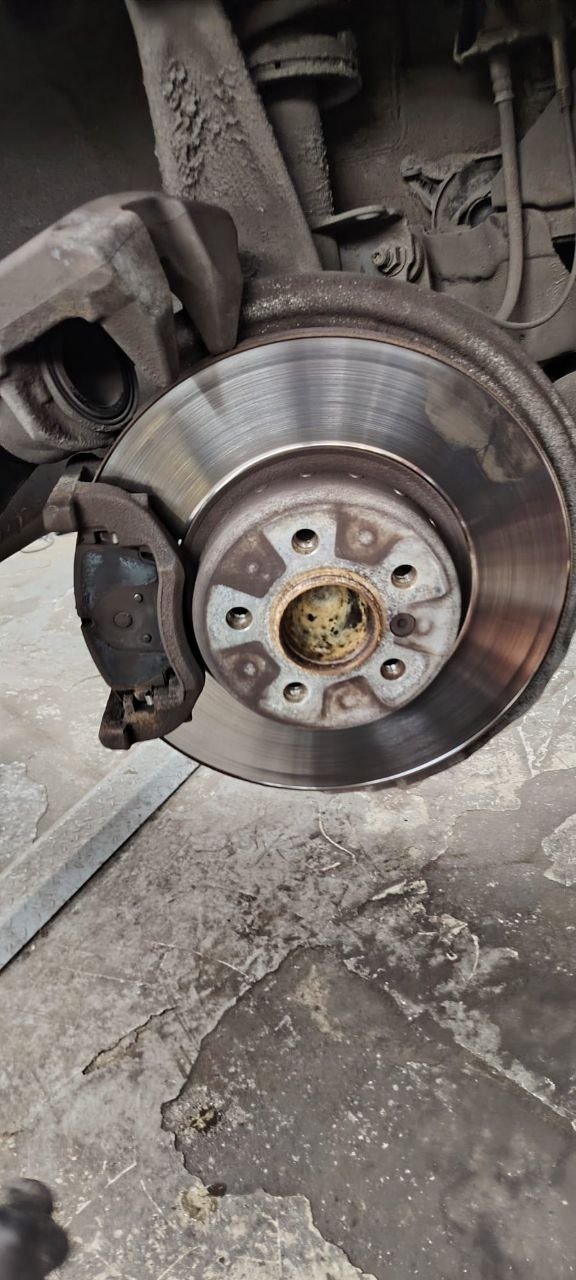

We fitted new brake discs and replaced the calipers with quality replacements suited to the vehicle. New brake pads were fitted at the same time. There is no point fitting new discs and leaving old pads in place, because worn pads will score a new disc surface within the first few hundred miles. Once the new components were on, we bedded the brakes in correctly and checked the pedal feel before returning the car to the customer. The difference was immediate. A firm, progressive pedal with no judder and braking that felt consistent from the start of the stop to the end of it.

Brake work is one of the most common jobs we carry out here in Walsall, and the BMW 5 Series is a car we see regularly. If you are driving a 5 Series or any other BMW and you have noticed a judder through the pedal, a pulling sensation when you brake, a grinding noise, or a soft pedal that requires more pressure than usual, those are the signs worth acting on before a straightforward service turns into a larger job. Any spongy or inconsistent pedal feel is worth having checked. Corrosion on discs that looks like a thin layer of surface rust after the car has sat overnight is normal and clears itself after a few stops, but deep pitting or a visible lip at the edge of the disc means the disc is past its serviceable life. We offer brake inspections and full brake servicing for all makes and models, and we will always tell you what we find and what actually needs doing rather than adding work that is not necessary. If your car is due a brake check, get in touch with us at Platinum Vehicle Services in Walsall and we will take a look. You can book online or find out more at platinumvehicleservices.co.uk.
