Vauxhall Vivaro Brake Pad, Disc and Caliper Replacement in Walsall

We had a Vauxhall Vivaro in with us recently, brought in because the driver had noticed the brakes were feeling less responsive and there was a low grinding noise when stopping. For a van that size, carrying loads day in and day out, the braking system works hard and the components wear faster than most owners expect. When we got it up on the ramp and took the wheel off, it was clear this one needed more than a straightforward pad swap.

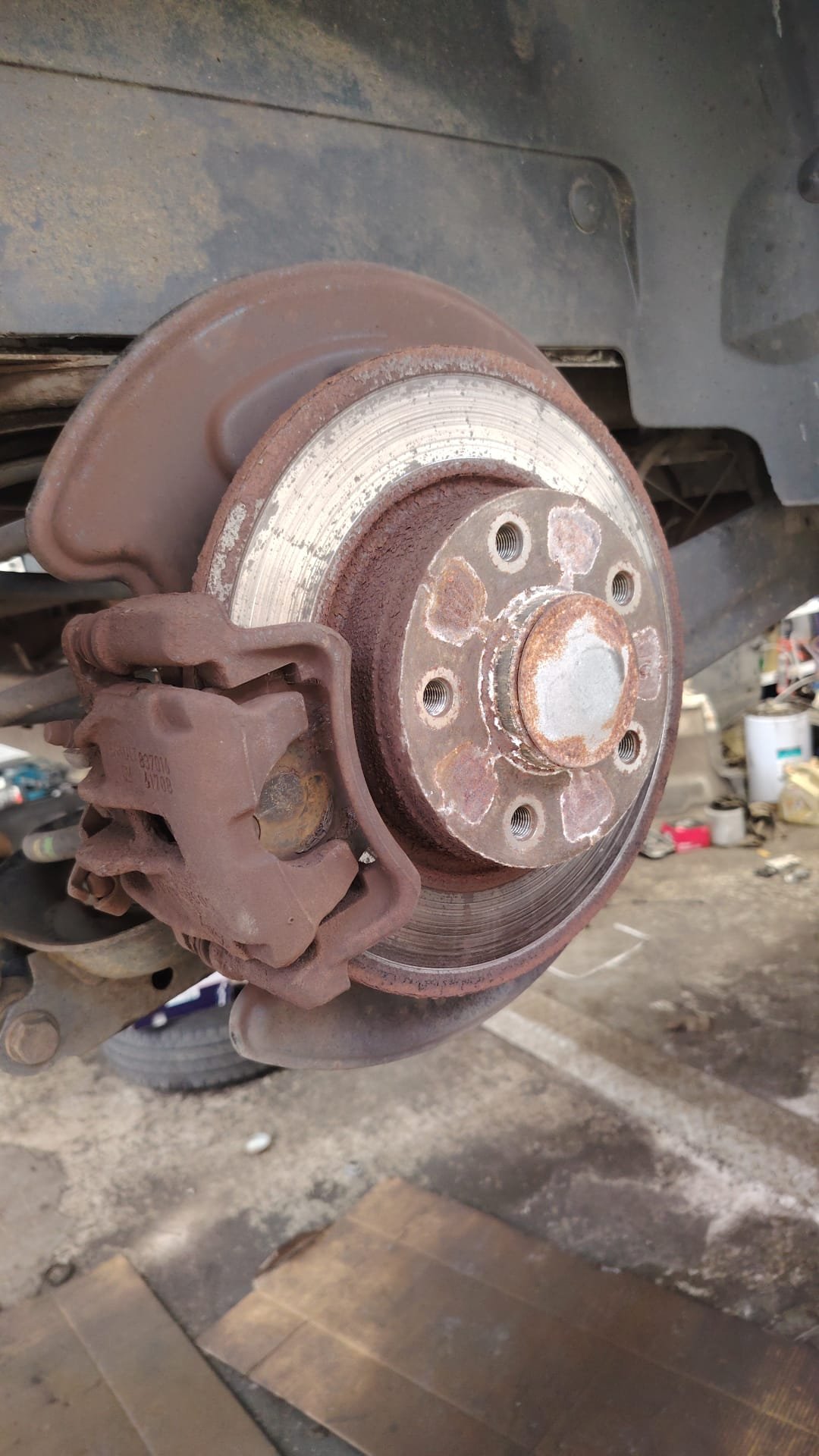

The Pads Were Worn Down and the Disc Had Reached the Limit of Safe Use

With the wheel removed we could inspect the brake pad thickness directly. The pads had worn down to around 2mm. The minimum we would consider safe for a vehicle of this weight is 3mm, and the legal limit sits at 1.6mm. At 2mm there is very little material left before the metal backing plate makes contact with the disc. Once that happens, the disc surface gets scored and grooved, and what started as a pad replacement becomes a disc replacement as well. In this case the disc had already reached its minimum thickness limit, measured with a micrometer at the thinnest point. A brake disc that has worn to its minimum can flex slightly under heavy braking, which reduces your stopping power at exactly the moment you need it most.

The caliper, which is the clamp that squeezes the pads against the disc to stop the vehicle, was also seized. A seized caliper means one side of the pad is pressing harder than the other, or pressing constantly even when you are not braking. That uneven pressure is what accelerates wear on both the pads and the disc unevenly, and it also generates heat that can lead to brake fade, where the brakes become progressively less effective the harder you use them.

Leaving These Faults Would Have Cost More and Created a Real Safety Risk on the Road

A van like the Vivaro can weigh over 2,000 kilograms when loaded. At 60 miles per hour, the difference between brakes that are working correctly and brakes that are not can mean several extra metres of stopping distance. That is not a small margin. On a motorway or dual carriageway, those metres matter considerably. Beyond the safety side, leaving worn pads and a scored disc means the disc surface deteriorates further with every journey. A disc that could have been replaced on its own becomes a disc and caliper job regardless, and you are paying for both whether you act now or in three months time. Acting when the fault is first found is always cheaper.

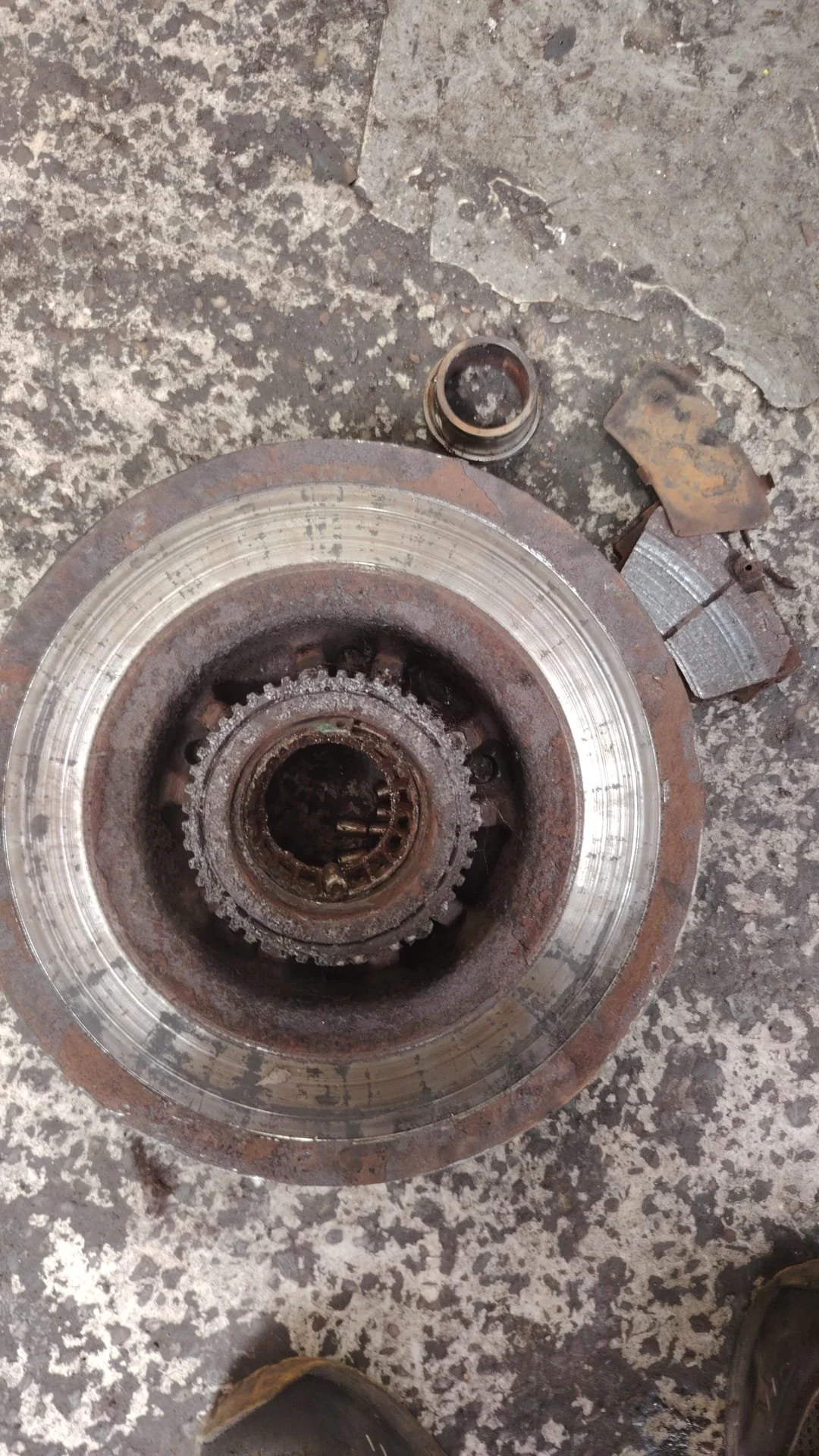

This Model Has a Disc With a Built In Wheel Bearing, So the Whole Assembly Comes Off as One Unit

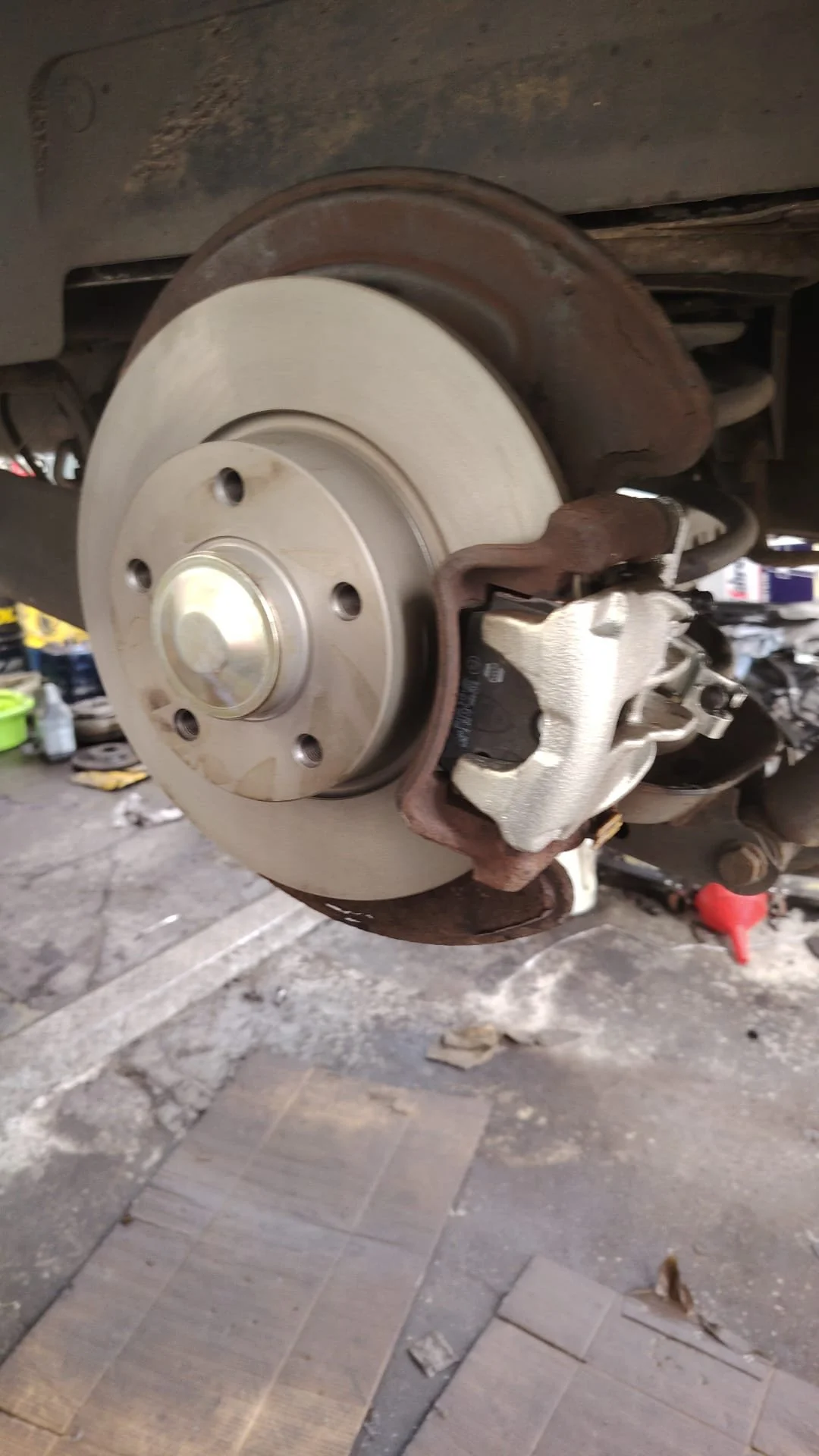

One thing worth explaining about this particular Vivaro is that the brake disc on this axle has an integrated wheel bearing. The bearing is the component that allows the wheel to spin smoothly on the axle. On most cars the disc and the bearing are separate parts, but on this model they are combined into a single assembly. That means when the disc needs replacing, you cannot remove just the disc. The entire unit, disc and bearing together, has to come off as one piece. We used a hub puller to draw the assembly free from the axle without causing damage to the surrounding components. The new disc and bearing assembly was then pressed and torqued into place to the manufacturer specification. Once everything was fitted we bled the brake system to remove any air from the hydraulic lines, because air in the lines causes a soft or spongy pedal feel and reduces braking response. A full road test confirmed the pedal feel was firm and the braking performance was correct before the van went back to the owner.

What to Watch For on Your Own Vehicle and How to Book in With Us in Walsall

Brake jobs like this one are a regular part of what we do here at Platinum Vehicle Services in Walsall. We work on vans as well as cars, and we carry out everything from a single pad replacement through to full brake overhauls involving discs, calipers and brake fluid changes. If you notice any of the following, get your vehicle checked sooner rather than later, a grinding or squealing noise when braking, a pulsing or vibrating feeling through the brake pedal, the van or car pulling to one side when you brake, or a pedal that feels softer or lower than it normally does. Any one of those signs can mean the brakes are at or near the point where they need attention.

We are based in Walsall and serve drivers and van operators across the West Midlands. You can find out more and book your vehicle in at platinumvehicleservices.co.uk. If you would prefer to leave a message, you can reach us on 07970901354 at any time, 24 hours a day, seven days a week, and someone from the team will get back to you as soon as possible.
