BMW 5 Series Air Conditioning Regas in Walsall

This BMW 5 Series came into us at Platinum Vehicle Services because the air conditioning had stopped blowing cold. The driver had noticed it over a few weeks, probably thinking it would sort itself out, but it did not. By the time it arrived with us the system was blowing air at roughly ambient temperature, which on a warm day means the cabin stays uncomfortably hot no matter where you set the controls. We put it on the AC station, checked the system pressure, and went from there.

The System Was Low on Refrigerant and the Pressure Had Dropped Below the Operating Range

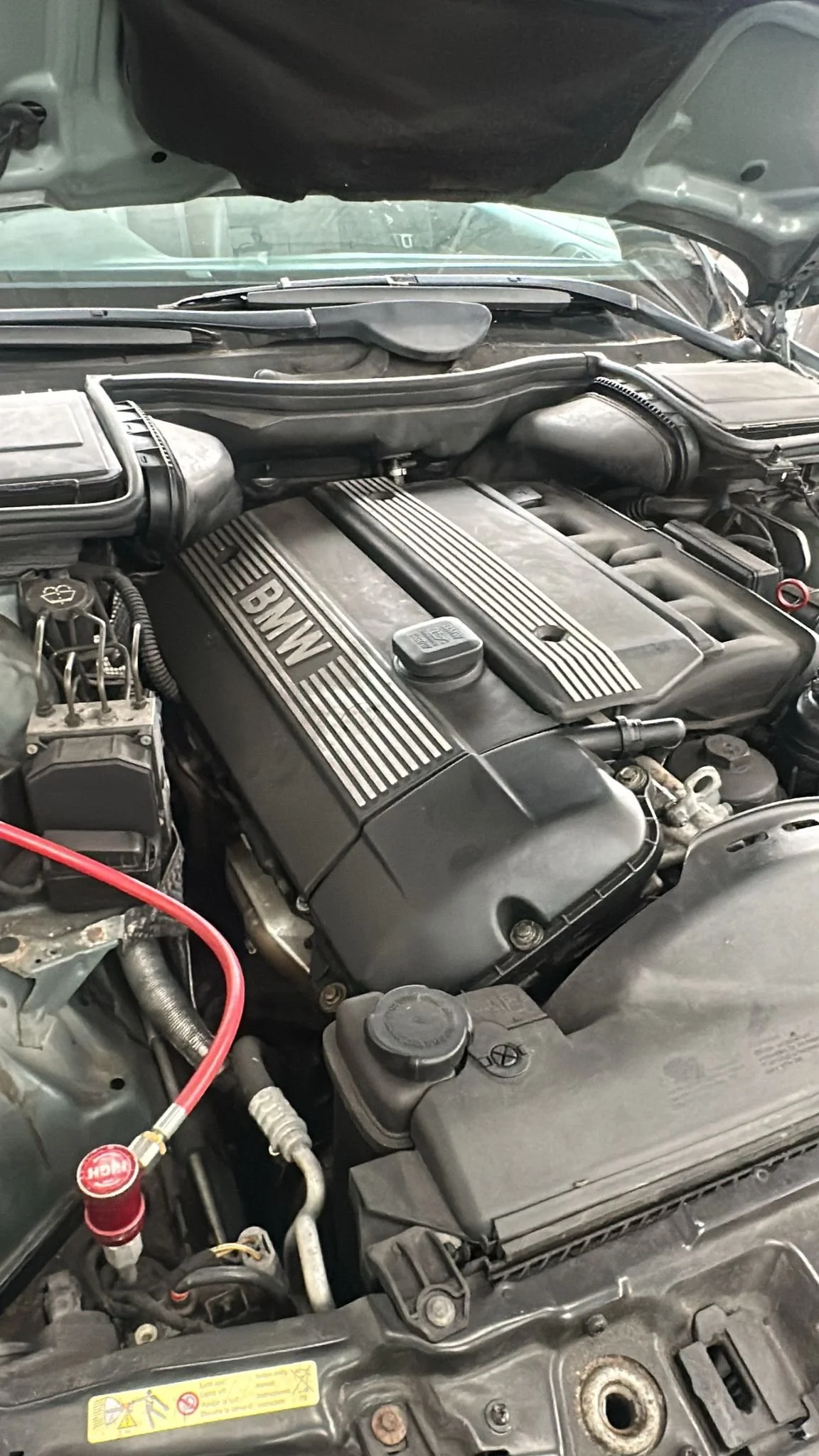

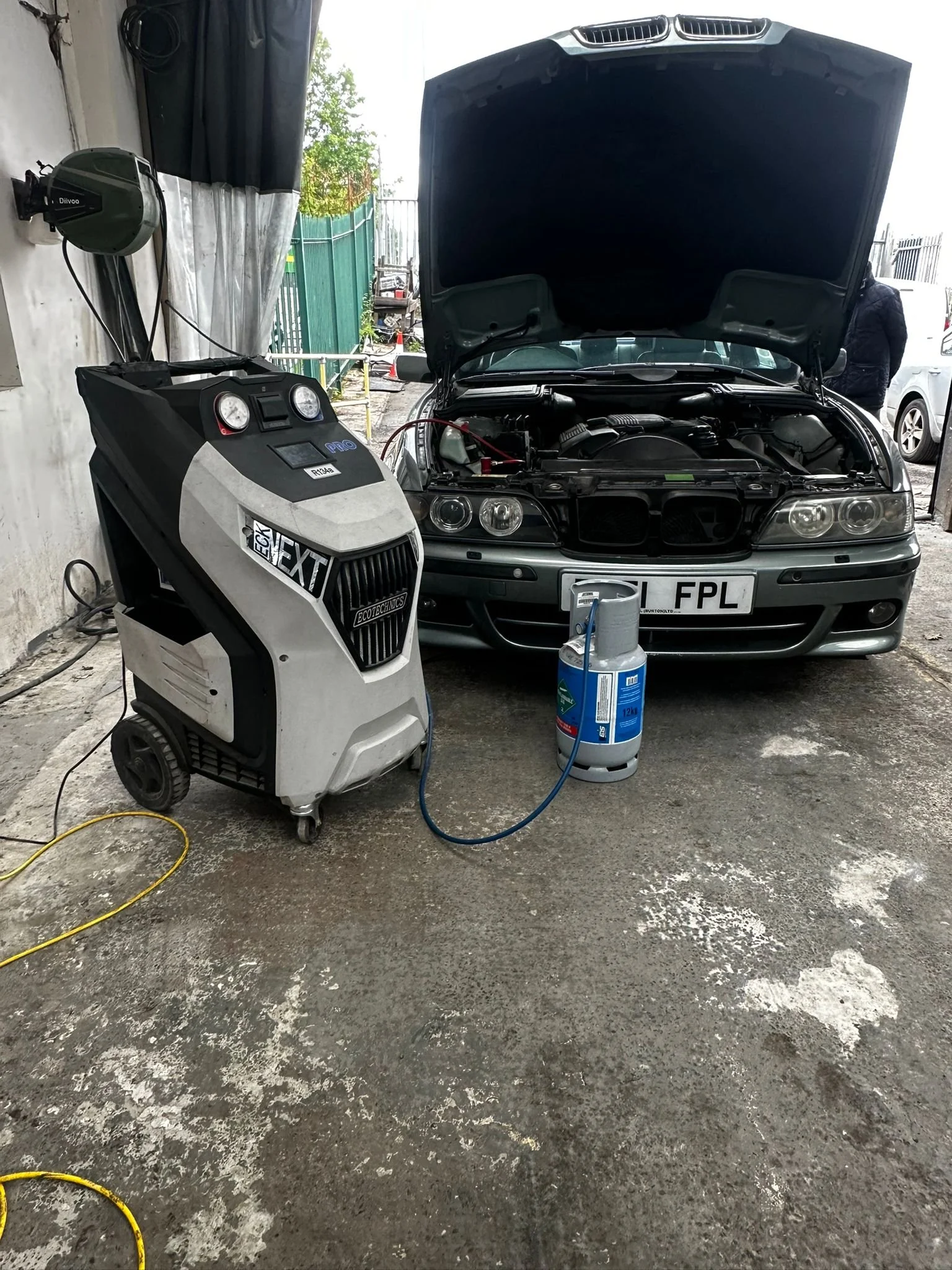

When we connected the AC machine to the high and low pressure ports, the readings told us the refrigerant level was significantly down. A healthy R134a system on a car like this should hold around 750 to 800 grams of refrigerant and operate within a specific pressure window on both the high and low sides. This system was well outside that range. Low refrigerant means the compressor cannot do its job properly. The compressor is the component that pressurises the refrigerant and pushes it through the system so that heat can be transferred out of the cabin. Without enough refrigerant to work with, it either cycles off too quickly or runs under strain trying to compensate. Neither is good for the longevity of the compressor.

We also checked for any obvious signs of contamination in the oil that came out during the recovery stage. The oil that circulates with the refrigerant keeps the compressor lubricated, so if it comes out dark or carrying debris, that tells you there may be wear happening inside the system. In this case it came back reasonably clean, which was a good sign.

Leaving the System Low Would Eventually Have Put the Compressor at Risk

A lot of customers assume that if the AC just stops being cold, the worst that happens is they are uncomfortable in summer. That is partly true, but there is more to it. When a system is run consistently low on refrigerant, the compressor starts to work harder than it should to try and build pressure. Over time that added strain causes wear on the internal components. Compressor failure on a BMW 5 Series is not a small job. Parts alone can run into several hundred pounds before labour is even considered, and if metal debris from a failed compressor gets into the condenser or the expansion valve, you are looking at replacing those too.

There is also the matter of the refrigerant oil. The oil travels around the system with the refrigerant. If refrigerant is low, less oil is circulating, which means lubrication is reduced. That accelerates wear further. Sorting the regas at this stage, before any of that damage had occurred, was the right time to do it.

The System Was Fully Evacuated, Recharged to the Correct Weight, and Tested Cold Before Leaving

We carried out a full vacuum on the system to remove any moisture and residual refrigerant before recharging. Moisture in an AC system is a problem because it can combine with the refrigerant to form acid, which degrades seals and internal components over time. The vacuum stage removes that risk.

Once the system held vacuum without any pressure rise, which confirms there are no significant leaks that would cause it to lose refrigerant again quickly, we recharged it with the correct weight of refrigerant for this model. We also added the appropriate amount of compressor oil to replace what was lost during the recovery process.

After recharging, we ran the system and measured the vent temperature. On a properly working AC system you want to see vent temperatures somewhere in the region of 2 to 8 degrees Celsius under normal operating conditions. This car was sitting right in that range before it left us, which tells you the system is doing exactly what it should.

If you have noticed that your own car's air conditioning is not as cold as it used to be, or it takes a long time to cool the cabin down, that is the most common sign the refrigerant level is dropping. Other things to watch for include the system blowing cold intermittently, a faint musty smell when you first switch it on, or the compressor making a noise when the AC is activated. None of those should be ignored.

We carry out AC regas and full air conditioning checks here at Platinum Vehicle Services in Walsall, serving customers across the West Midlands. Whether your system has gradually lost its cooling ability or has stopped working entirely, we can diagnose what is happening and get it sorted. If your car's air conditioning is not performing as it should, book in with us at platinumvehicleservices.co.uk and we will take a look.
